Q10079 68-line leaf-spring I/O connector

Tags: Help, analog I/O

Applies to: PCI DAP, accessory boards with 68-line leaf-spring connector

I have a board with a 68-line leaf-spring connector for analog I/O. How should I connect to it?

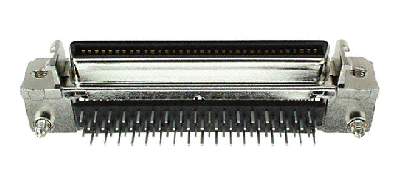

Female (receptable, socket) 68-line leaf-spring type connectors are used primarily for analog I/O PCI DAP boards and some analog expansion boards. They are D-shaped connectors with a double row of pins on 0.050-inch centers. They mate with male (plug) 68-line connectors on connecting cables. A picture of a leaf-spring type connector is shown below:

Related Products and Pinout

  1. PCI DAP - PCI Data Acquisition Processor board

    A female 68-line connector is used on the following models of PCI DAP boards for analog I/O:

    • DAP 4000a
    • DAP 4200a
    • DAP 4400a
    • DAP 5000a
    • DAP 5016a
    • DAP 5200a
    • DAP 5216a
    • DAP 5380a
    • DAP 5400a

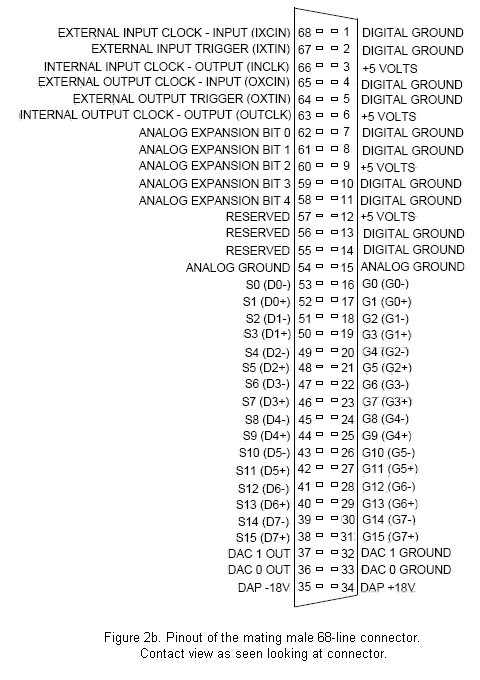

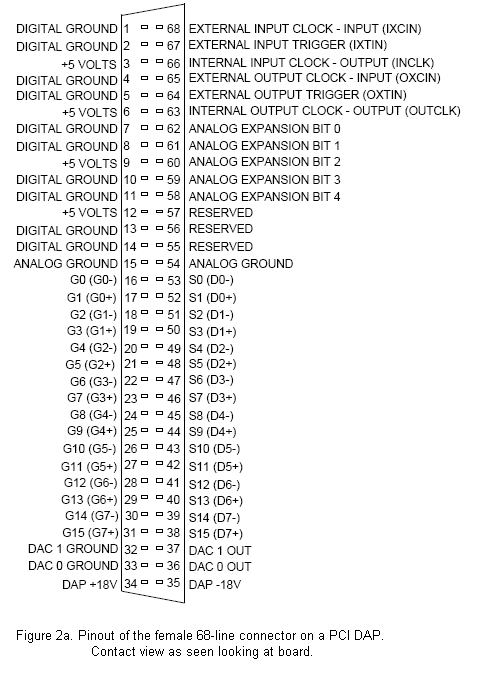

    The 68-line connector on the PCI DAP is different from that on the xDAP. Figures 2a and 2b show the pinout when connecting to the 68-line connector on a PCI DAP, with the corresponding connections on the male connector on the cable.

  2. MSXB028 - Simultaneous Analog Inputs

    The female 68-line connector used on PCI DAP boards is also used on the following models of the MSXB028 expansion boards, where m and n denote version release and package form, respectively:

    • MSXB028-m-A2Z, MSXB028-01-n2A, and MSXB028-m-n2Y - 16 single-ended simultaneous analog inputs

    The pinout of the connector on the board and the corresponding connections on the male connector on the cable are shown in Figures 2a and 2b above.


Mating Hardware

The 68-line female connector on PCI DAPs and MSXB028 board is AMP / Tyco part number 2-5178238-8. It mates with the following from AMP / Tyco for a round shielded cable:

  • Discrete wire male connector - 2-5175677-8
  • Connector shell - 2-176793-8

The female connector mates with the following from 3M for a IDC ribbon cable:

  • IDC male connector, 0.025 inch pitch - 10168-8000EE

The following product from Microstar mates with the female connector:

  • MSCBL040 - 68-line round shielded cable
  • MSCBL041 - 68-line ribbon cable
  • MSCBL043-01K - Discrete wire cable kit including connector and shell
  • MSCBL052-01K - IDC cable kit including male connector

L

DAP5000a Manual

MSXB028 Manual

Model number suffix

Note: Information on this page was collected from multiple sources. If you have any concerns about the accuracy of the information provided here, check the hardware manuals for your specific products. Those manuals are the authoritative sources.
