Q10083 50-line connector for digital I/O

Tags: Help, digital I/O

Applies to: MSXB039, accessory boards with 50-line connector

I have a board with a 50-line connector for digital I/O. How should I connect to it?

Female (receptable, socket) 50-line connectors are used primarily for digital I/O on some digital expansion boards. They are D-shaped connectors with a double row of pins on 0.050-inch centers. They mate with male (plug) 50-line connectors on connecting cables.

Related Products and Pinout

  1. MSXB039 - Opto Isolation Board

    The female 50-line connector is used on the following models of the MSXB039 for digital I/O, where m denotes the package form

    • MSXB039-05-m - 8 isolated digital channels with Opto22 modules

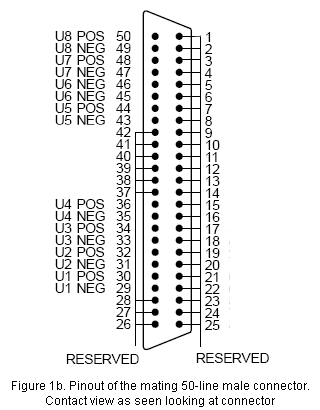

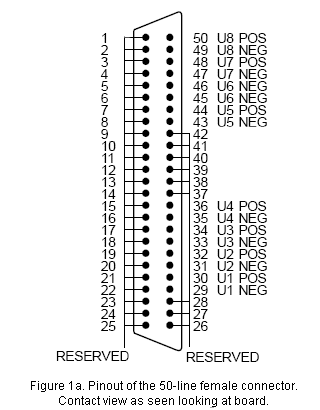

    Figures 1a and 1b show the pinout of the female connector on the MSXB039, with the corresponding connections on the male connector on the cable.

Mating Hardware

The 50-line female connector is part number HFR050RA29NS1. It mates with the following parts for a round cable:

  • D-connector - HFM050A
  • Shell - 300102-050AS5
  • Crimp pins - 1016029C-01

The female connector mates with the followng part from AMP for a ribbon cable:

  • IDC 50-pin male - 390377-5

The following products from Microstar mate with the female connector:

  • MSCBL048 - 50-line round, shielded cable
  • MSCBL049-01K - 50-line discrete wiring kit with connector and shell for round cable
  • MSCBL050 - 50-line ribbon cable
  • MSCBL051-01K - 50-line ribbon IDC cable kit

Other related products:


MSXB039 Manual

Model number suffix

Note: Information on this page was collected from multiple sources. If you have any concerns about the accuracy of the information provided here, check the hardware manuals for your specific products. Those manuals are the authoritative sources.
