Q 10129 Use Wago quick-connect terminals
How do I make connections to the quick-connect terminals?

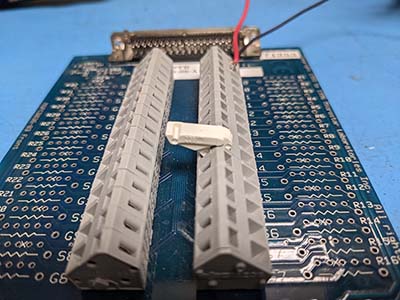

To set up some MSXB expansion boards or MSTB signal termination boards you need to connect the wiring for the quick-connect (Wago) terminals on the board itself.
To do this, use the white tool provided.

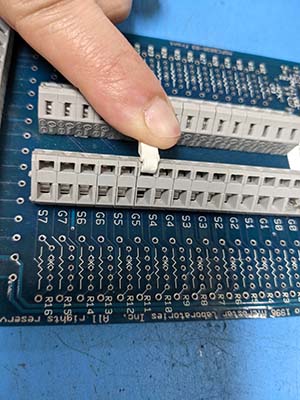

Press on it to open the connection point.
Insert the appropriate wire, then release pressure to secure the connection.
You can then move the tool to another location.
