Q10092 50-line pin-and-socket I/O connector

Tags: Help, iDSC, DAP 840

Applies to: iDSC, DAP 840, accessory boards with 50-line I/O connector

I have a board with a 50-line connector for I/O. How should I connect to it?

Female (receptable, socket) 50-line pin-and-socket connectors are used primarily on the iDSC 1816 and the DAP 840 for I/O. They are D-shaped connectors with a double row of sockets on 0.050-inch centers. They mate with male (plug) 50-line connectors on connecting cables.

Related Products and Pinout

  1. DAP 840 - Data Acquisition Processor Board

    The female 50-line connector is used on the following models of the DAP 840:

    • DAP 840/103 - 8 analog inputs, 2 analog outputs, 8 digital inputs, and 8 digital outputs

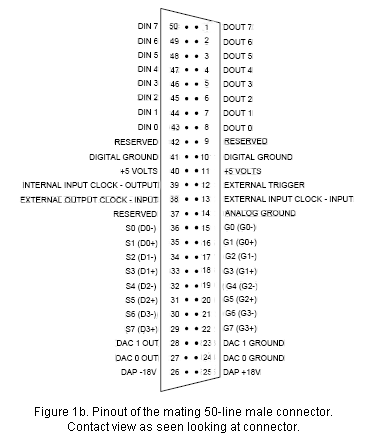

    Figures 1a and 1b show the pinout of the female 50-line connector on the DAP 840, with the corresponding connections on the male connector on the cable.

  2. iDSC 1816 - Data Acquisition Processor Board

    The female 50-line connector is used on the following models of the iDSC 1816:

    • iDSC 1816 - 8 simultaneous channels with anti-alias filters

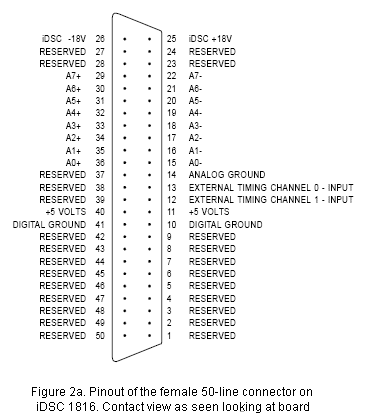

    Figures 2a and 2b show the pinout of the female 50-line connector on the iDSC 1816, with the corresponding connections on the male connector on the cable.


Mating Hardware

The 50-line female connector on the iDSC 1816 and DAP 840 is AMP / Tyco part number 5787082-5.

It mates with the following AMP / Tyco parts for a round shielded cable:

  • Round Jacketed Cable IDC male connector - 5749621-5
  • Backshell Kit - 749193-1

The female connector mates with the following from AMP / Tyco for an IDC ribbon cable:

  • IDC male connector - 5390377-5

The following product from Microstar mates with the female connector:

  • MSCBL048 - 50-line round shielded cable
  • MSCBL049-01K - Discrete wire cable kit including connector, shell, and pins
  • MSCBL050 - 50-line ribbon cable
  • MSCBL051-01K - IDC cable kit including male connector

Other related products:

  • MSTB010 - Termination board for DAP 840
  • MSXB042 - Termination board for iDSC 1816

L

DAP 840 Manual

iDSC 1816 Manual

Model number suffix

Note: Information on this page was collected from multiple sources. If you have any concerns about the accuracy of the information provided here, check the hardware manuals for your specific products. Those manuals are the authoritative sources.
