Isolated Inputs, 4-20 mA Current Loops : MSXB 086

data acquisition filtering data acquisition software channel architecture enclosures services

When you need a receiver for 4-20 mA current loops

click to view MSXB086 photo


DAP 5216a

DAP 5200a

DAP 5016a

DAP 5000a

DAP 4000a


MSXB 086 PDF Manual

Configuration Software Manual

Configuration Software

The MSXB 086 Isolated 4-20 mA Input Signal Interface (SI) Module provides isolated analog inputs for DAP systems and lets you acquire data from a number of 4-20 mA current loops for real-time processing or later analysis. Each module is calibrated for current inputs.

MSXB 086 includes 16 current inputs, with a shared ground, isolated from the PC. Each module offers high signal density and enables high channel counts. If you require groups of simultaneous isolated inputs, you can use multiple modules. Contact Applications Engineering at Microstar Laboratories for assistance.

Up to eight Isolated Analog Input SI Modules can be connected to a single DAP board for a total of 128 analog inputs.

MSXB 086 is installed in an Industrial Enclosure and uses a DB-37 connector or Wago terminals.

Industrial Enclosure compatible models

  • MSXB 086-01-E3K: DB-37 panel
  • MSXB 086-02-E3Y: Wago terminals, 1-slot blank termination panel
  • Other panel options are available.

Stand-Alone and Single-Board-Enclosure models

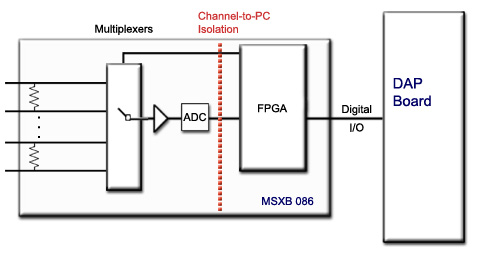

Channel-to-PC Isolation – MSXB086

current input isolation diagram
