Simple Digital Termination
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Digital Signal Termination: Connect your signals
Signal connections to a DAP

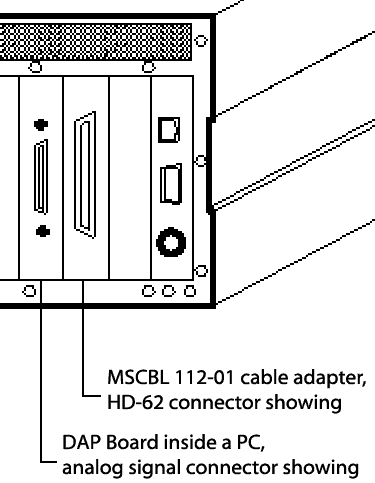

For only a few digital signals, use the MSCBL112-01 cable adapter to connect a DAP 100-line digital input/output port to an HD-62 connector on a PC backpanel.
Then use an MSCBL109-01K cable kit – a 62-line discrete wire cable kit for high density D-sub connectors – to wire your signals to the connector.
This provides an inexpensive, CE-safe way to connect just a few signals to a DAP board, without adding expansion outside of the PC.
Need more signals or easier plug-in expansion?
Signal Termination boards allow quick and secure connection of discrete wires to a DAP.
MSTB 008: Digital Termination Boards
MSTB 010: Termination Boards for the DAP 840 only
Contact us – our engineers will help you specify the parts for your unique application.
Do you need a specific function added to your DAP system? Browse the function list. Or use the overview table.
Do you know the part number of the signal interface board you need? Browse the part number list.
Do you know the DAP board you use – or will use – and only want to see the signal interface boards that work with it?
